تفاصيل المنتج
مكان المنشأ: الصين
اسم العلامة التجارية: OUB
إصدار الشهادات: ISO9001
رقم الموديل: 175-15-45761
شروط الدفع والشحن
الحد الأدنى لكمية: 10
الأسعار: قابل للتفاوض
تفاصيل التغليف: PP Bag Inside.outer هو كرتون مع فيلم ملفوف.
وقت التسليم: في غضون 5-15 يومًا بعد الحصول على مسكك
شروط الدفع: خطاب الاعتماد، D/A، D/P، T/T، ويسترن يونيون
القدرة على العرض: 1000 قطعة
الجزء رقم:: |
175-15-45761 |
نموذج: |
D355C-3 |
اسم الجزء:: |
طوقا |
يناسب ل: |
محول عزم الدوران |
آلة: |
الجرافات الزاحفة |
مادة: |
مطاط النتريل بوتادين |
لون: |
رمادي |
الجزء رقم:: |
175-15-45761 |
نموذج: |
D355C-3 |
اسم الجزء:: |
طوقا |
يناسب ل: |
محول عزم الدوران |
آلة: |
الجرافات الزاحفة |
مادة: |
مطاط النتريل بوتادين |
لون: |
رمادي |
1. Quick Details of seal 175-15-45761 :
| Part NO. | 175-15-45761 |
| Machine | Crawler Dozers |
| Size | OEM |
| Material | Nitrile Butadiene Rubber |
| Oil seal type | SERVICE KIT,TORQUECONVERTER |
2. 175-15-45761 parts on group :
| NO. | PART NO. | PRAT NAME | QTY |
| 1 | 175-15-45512 | COVER | 1 |
| 2 | 07040-15223 | PLUG | 1 |
| 3 | 07002-05234 | O-RING (K2) | 1 |
| 4 | 175-15-45750 | PLATE | 1 |
| 5 | 175-15-45761 | GASKET (K2) | 1 |
| 6 | 01010-81020 | BOLT | 2 |
| 7 | 01643-31032 | WASHER | 2 |
| 8 | 175-15-45560 | LEVER | 1 |
| 9 | 06120-02016 | BEARING | 2 |
| 10 | 175-15-49120 | SEAL (K2) | 1 |
| 11 | 175-15-45570 | WASHER | 1 |
| 12 | 04064-01812 | RING | 1 |
| 13 | 175-15-45610 | SHAFT | 1 |
| 14 | 06121-02016 | BEARING | 1 |
| 15 | 06120-02016 | BEARING | 1 |
| 16 | 175-15-49120 | SEAL (K2) | 1 |
| 17 | 175-15-45620 | STOPPER | 1 |
| 18 | 04050-03040 | PIN (K2) | 1 |
| 19 | 175-15-45570 | WASHER | 1 |
| 20 | 04064-01812 | RING | 1 |
| 21 | 175-15-45630 | LEVER | 1 |
| 22 | 125-15-11530 | BOLT | 1 |
| 23 | 175-15-45670 | SLEEVE | 1 |
| 24 | 175-15-45690 | LEVER | 1 |
| 25 | 144-15-29121 | BEARING | 2 |
| 26 | 144-15-25691 | PIN | 1 |
| 27 | 01580-11008 | NUT | 1 |
| 28 | 04059-01010 | WIRE | 1 |
| 29 | 175-15-45650 | BOLT | 1 |
| 30 | 01643-31032 | WASHER | 1 |
| 31 | 07002-01223 | O-RING (K2) | 1 |
| 32 | 175-15-45660 | WASHER | 2 |

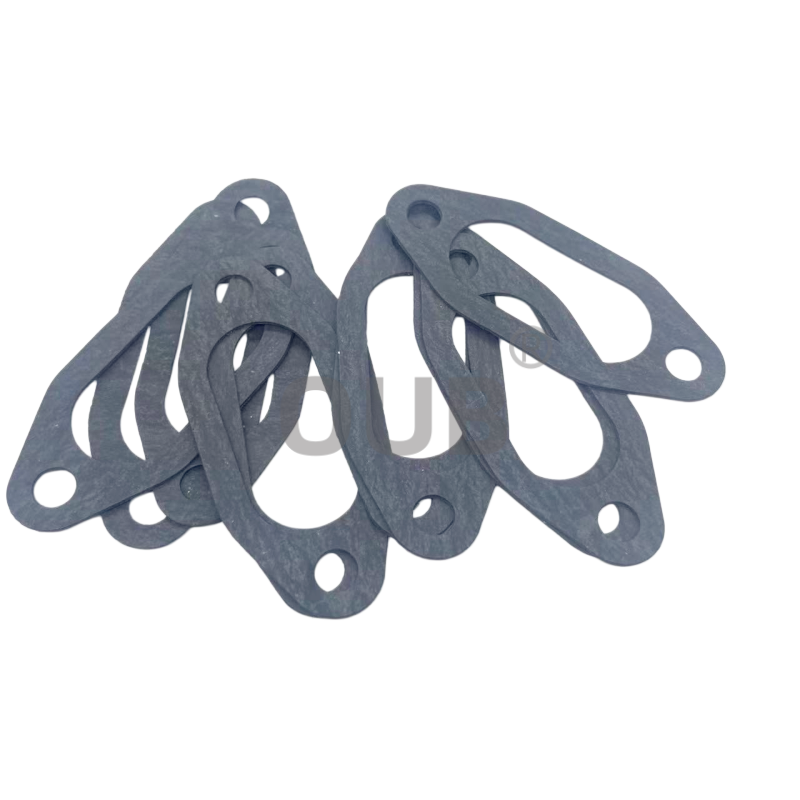

3. 175-15-45761 picture:
4. Service part number :
| PART NO. | PART NO. | Part NO. |
| 707-35-52670 | 707-51-45640 | 707-99-75600 |
| 707-51-45640 | 707-51-11640 | 707-51-80640 |
| 707-51-50640 | 707-99-43690 | 707-98-36600 |
| 707-51-55630 | 707-51-90630 | 707-98-36700 |
| 707-51-55630 | 707-51-90640 | 707-51-10211 |
| 707-51-55640 | 707-51-80030 | 707-51-11030 |
| 707-51-60640 | 707-51-80110 | 707-51-16030 |
| 707-51-60650 | 707-51-80211 | 707-98-27100 |
| 707-99-77120 | 707-51-85130 | 707-51-16130 |
| 707-51-65650 | 707-51-85030 | 707-51-17030 |
| 707-35-99500 | 707-44-95180 | 707-51-17130 |
| 707-35-52830 | 707-44-95150 | 707-51-18030 |
| 707-35-52860 | 707-98-60120 | 707-98-58240 |
| 707-51-70650 | 707-98-60121 | 707-51-20250 |
| 707-99-77240 | 707-98-61100 | 707-35-52700 |
5. FAQ
Q: What happens if the gasket’s dimensions are slightly off?
A: If the central opening is too small, it can restrict flow and cause pressure buildup. If the bolt holes are misaligned, the gasket will not seat properly, leading to uneven clamping pressure and leaks.
Q: What happens if the gasket is installed backwards?
A: Installing it the wrong way can misalign the bolt holes or central opening, causing blockages, leaks, or improper sealing. Some flange gaskets are also designed with a specific “up” or “flow” orientation, and reversing them can disrupt performance.
Q: What happens if the gasket is not replaced in time?
A: Over time, heat, pressure, and chemical exposure cause the fiber material to harden, crack, or blow out. This leads to air/vacuum leaks, exhaust leaks, or fluid loss, which can reduce engine performance or cause damage.
Q: Can this gasket be reused after disassembly?
A: No, it is not recommended. Once compressed and exposed to high temperatures, the fiber material loses its elasticity and takes a permanent set. Reusing it will almost always result in leaks, so it must be replaced during reassembly.
6. Exhibition and Wearhous
